Features & Details

• Powerful Driving: Designed for threading 1/2" – 2"/12.7-50.8 mm pipe. 220V 2300W motor produces 22 RPM no-load speed and is completely enclosed. The motor of this electric pipe threader adopts all-copper core coils to ensure efficient and stable running.

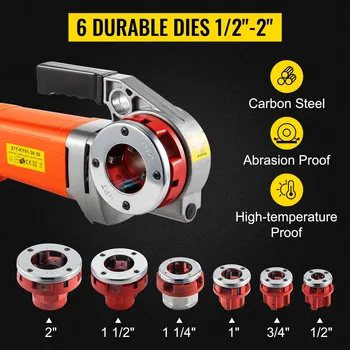

• Changeable Dies 1/2"-2": 6 Die Heads and Dies Included: 1/2"/12.7 mm, 3/4"/19.1 mm, 1"/25.4 mm, 1 1/4"/31.8 mm, 1 1/2"/38.1 mm, 2"/50.8 mm. Our pipe threading machine adopts carbon steel dies, long life, clear thread. Die heads can be quickly replaced.

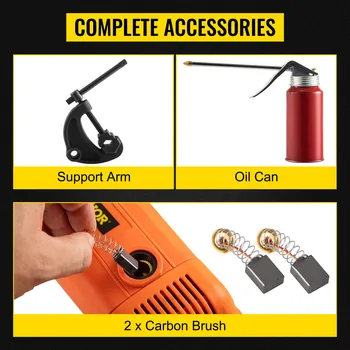

• Convenient Operation: Our pipe threader machine includes two replacement carbon brushes, one fixed bar and pipe clamp, one convenient oil can. Never worry about being stuck in a pinch and incorporate the included tools to finish your job flawlessly.
• Reliable & Portable: Security button and forward/reverse switch are trustable. Lightweight and compact hand design is labor-saving, convenient carrying, and durable. Meet your needs for your travel from one job to another.
• Wide Applications: Our applies to the threading work of galvanized pipe, iron pipe, plastic pipe, etc. This product is suitable for industrial and mining enterprises, institutions, and family maintenance.


Operation Guide:


1. Select the appropriate die head, the reed will be back, from the right installed on the host.


2. Clamps, clamps the tube, about the same length as the arm (L2 is about equal to L1).


3. Turn the front and back switches in the down arrow position to start the switch and the auxiliary contacts.


4. In the case of hard tube such as stainless steel pipe, galvanized pipe, brass when the timely refueling, plastic pipe without fuel.


5. Note that the tube holder can not be touched with the host during the right shift, otherwiseit will hurt the host.


6. After the machine stops, then pull the reverse switch up arrow position, exit the tube.


7. This product supports the use of standard pipes.
